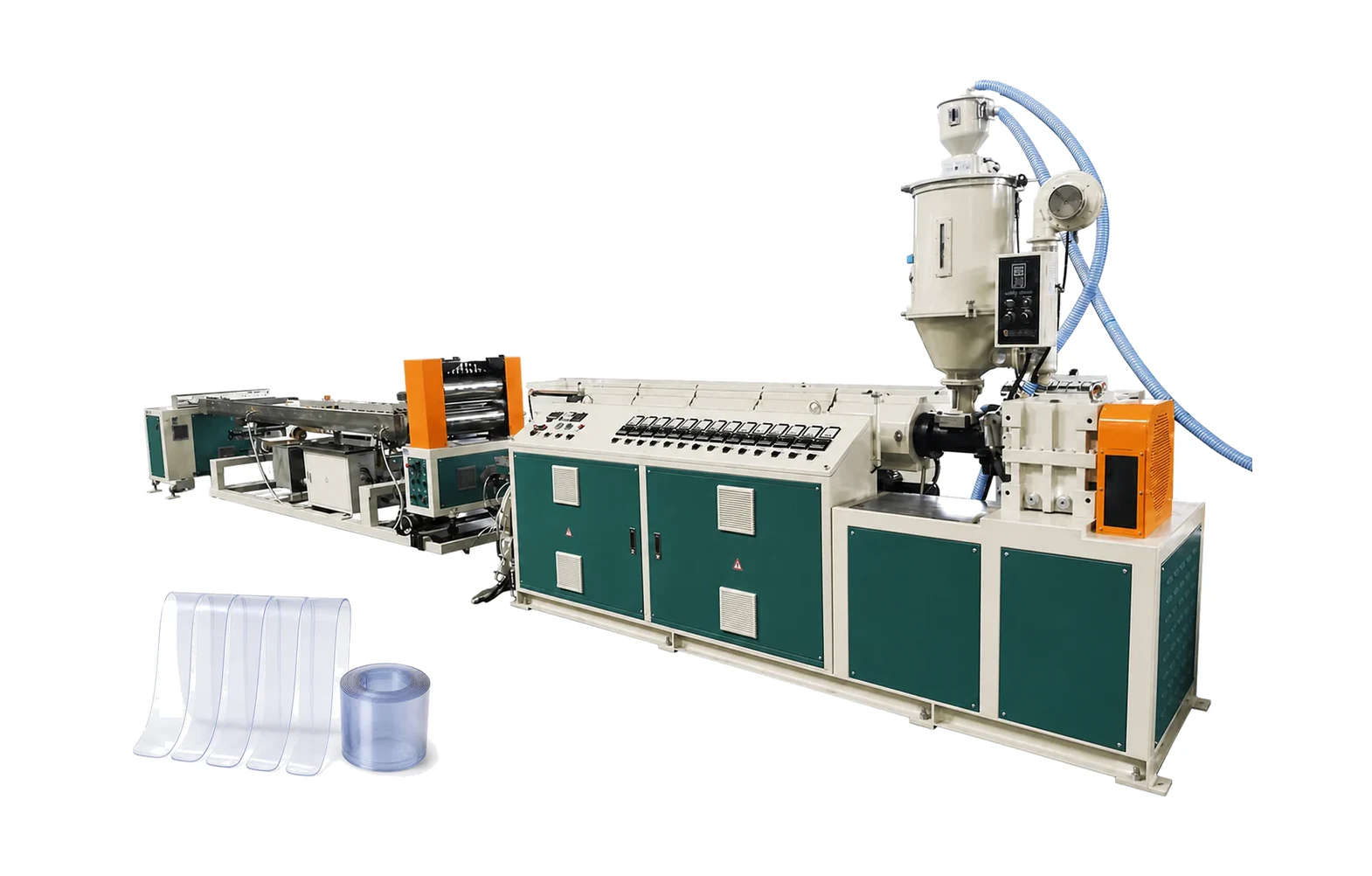

PVC Transparent Curtain Machine
Product Overview
The PVC Transparent Curtain Machine produces flexible transparent PVC strips used for strip door curtains in cold rooms, clean rooms, warehouses, and industrial facilities. These curtains provide thermal insulation, dust control, and noise reduction while allowing personnel and equipment to pass through.
This compact line uses a single-screw extruder (SJ-65/25) with a multi-pattern die capable of producing smooth, ribbed, or dotted strip profiles. The different surface patterns serve specific functions — ribbed strips reduce scratching and improve visibility, while smooth strips provide maximum clarity.
PVC curtain strips are produced in widths from 50mm to 300mm and thicknesses from 1mm to 5mm. The most common products are 200x3mm transparent strips for standard strip doors and 300x4mm ribbed strips for heavy-duty industrial applications. Transparency of 85%+ ensures good visibility for safety.
The water cooling tank provides rapid solidification for high-speed production (8-15 m/min), while the automatic winding system produces rolls of 30-50kg for easy handling and installation. The entire line occupies only about 12 meters of floor space, making it one of the most compact extrusion lines available.
Key Features
Single-screw extruder
Multi-pattern die (smooth/ribbed/dotted)
Water cooling tank
Haul-off with speed control
Automatic winding system
Production Process
From raw material to finished product — each step is engineered for quality and efficiency.
Compound Preparation
Transparent PVC compound with high-clarity resin, non-toxic stabilizers, and UV inhibitors. Formulation ensures long-term transparency without yellowing.
Extrusion & Die Forming
The extruder processes the compound at 160-180°C through a multi-pattern die that produces smooth, ribbed, or dotted strip profiles.
Water Cooling
The strip enters a water cooling tank for rapid solidification. Water temperature (20-30°C) is controlled to prevent stress and maintain optical clarity.
Haul-off
A caterpillar haul-off pulls the strip at controlled speed (8-15 m/min), maintaining consistent dimensions and surface quality.
Winding
The finished strip is wound onto cores with automatic tension control. Standard roll weights are 25-50kg for manageable handling and installation.
Packaging
Rolls are packaged in protective film and labeled with strip dimensions, pattern type, and roll weight for distribution.
Technical Specifications
| Extruder Model | SJ-65/25 |
|---|---|
| Strip Width | 50mm - 300mm |
| Strip Thickness | 1mm - 5mm |
| Transparency | ≥ 85% |
| Production Speed | 8-15 m/min |
| Total Power | ~25-40 kW |
Why Choose Wings Plastic
Multi-Pattern Die
Single die produces smooth, ribbed, or dotted strip profiles — each serving different applications. Ribbed strips resist scratching and improve visibility; smooth strips maximize clarity.
High Transparency
Formulation and processing achieve 85%+ light transmission, ensuring clear visibility through strip curtains for safety in industrial and commercial environments.
Compact & Efficient
At only 12m line length and 8-15 m/min production speed, this line delivers excellent output per square meter of factory space — ideal for small operations or multi-product facilities.
UV-Stabilized Grades
UV stabilizer packages prevent yellowing and maintain transparency for 5+ years, even in sunlit warehouse entrances and outdoor applications.
Low Investment, Quick Returns
This is one of the lowest-cost PVC extrusion lines to purchase and operate, with typical payback periods of 8-14 months for dedicated curtain strip production.
Quality Assurance
Every production line undergoes rigorous quality verification before delivery:
- Light transmission measured with lux meter (target: 85%+)
- Strip width and thickness verified with digital calipers
- Surface quality inspected for clarity, bubbles, and flow marks
- Flexibility tested by wrapping strip around 50mm mandrel without cracking
Typical Applications
Frequently Asked Questions
200x3mm for standard interior strip doors (warehouses, retail), 200x4mm for cold room doors, 300x4mm for heavy industrial doors, 100x2mm for lightweight partitioning. The 200x3mm smooth strip is the best-selling product.
Smooth strips provide maximum clarity (better visibility). Ribbed strips resist scratching (last longer in high-traffic areas) and reduce surface contact (easier to walk through). Most customers order both types for different door locations.
In normal indoor use (warehouses, retail), 3-5 years. In cold rooms, 5-8 years (cold temperatures slow plasticizer migration). In high-traffic industrial doors, 1-2 years (mechanical wear is the limiting factor).
Yes, tinted strips (amber for welding screens, blue for insect control, opaque for privacy) are produced by adding pigments. Transparent strips are the most common (85%+ of market demand).
