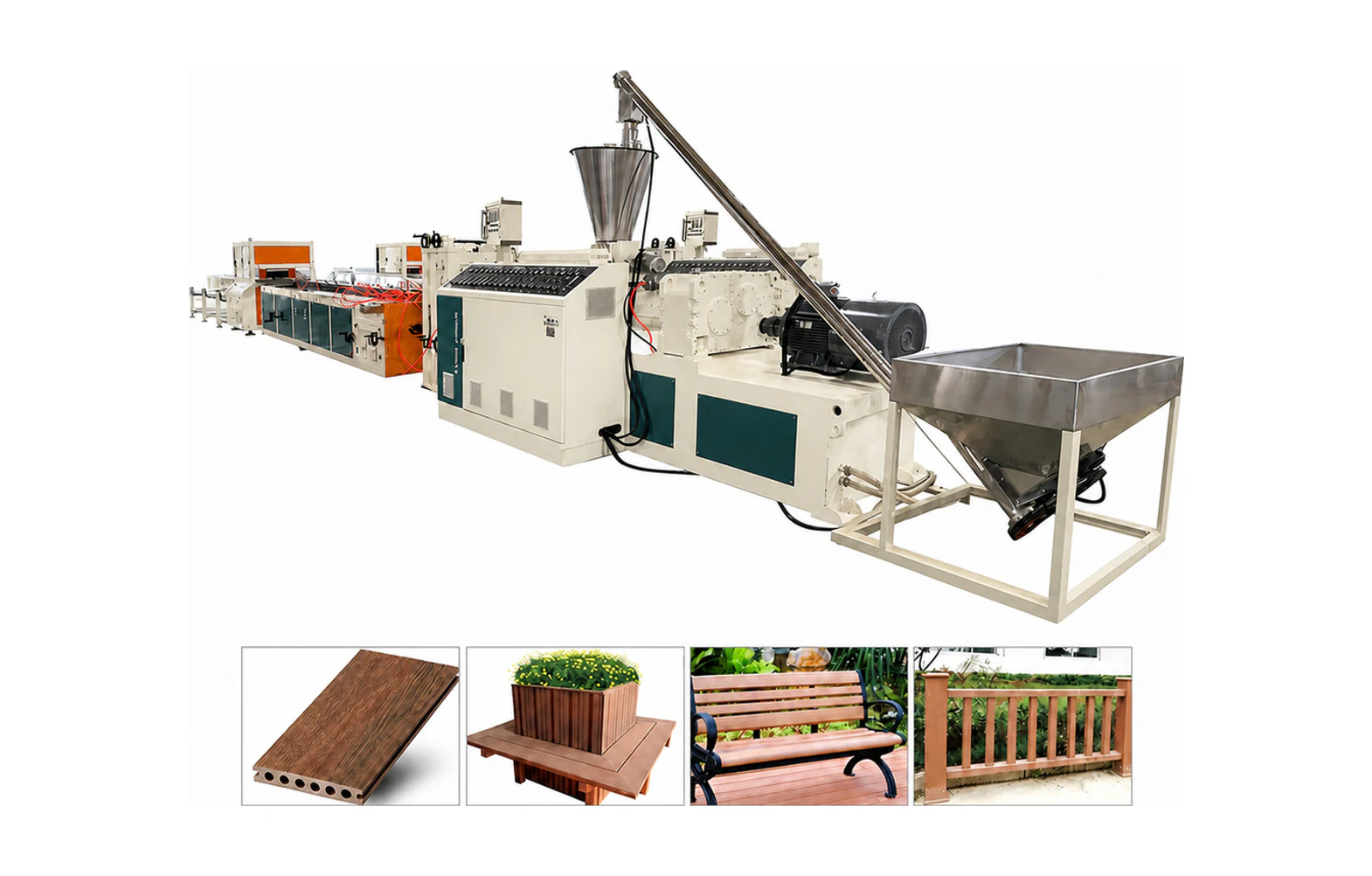

WPC Fence Machine
Product Overview
The WPC Fence Machine produces wood-plastic composite fencing panels and posts for outdoor perimeter fencing, garden enclosures, and privacy screens. These products offer the natural appearance of wood fencing with the rot resistance, termite proof properties, and low maintenance of plastics.
The line features a parallel twin-screw extruder (SJZ-80/156) for PE/PP-based WPC with 50-60% wood flour content. The system produces both fence panels (the horizontal/vertical slats) and fence posts (the vertical structural members), using different profile dies on the same extruder.
Outdoor WPC fencing must withstand ground contact moisture, UV exposure, and biological attack. Our formulation includes high loading of UV stabilizers, zinc borate anti-fungal agents, and coupling agents for maximum moisture resistance. Ground-contact rated formulations are available for posts installed directly in soil.
The online embossing system applies wood grain texture to fence panels and posts, creating a natural wood appearance. The deep texture also helps conceal minor scratches and weathering effects, maintaining appearance over years of outdoor exposure.
Key Features
Parallel twin-screw extruder
Fence panel and post profile dies
UV and anti-fungal additive system
Online embossing
Cutting and drilling
Production Process
From raw material to finished product — each step is engineered for quality and efficiency.
Outdoor WPC Compound
PE/PP pellets, dried wood flour (50-60%), coupling agent, UV stabilizers, anti-fungal agents, and pigments are mixed. Ground-contact grades may include additional preservatives.
Extrusion
The compound is processed at 180-200°C in the parallel twin-screw extruder. High wood content requires intensive mixing and venting to remove moisture.
Panel/Post Die Forming
The molten WPC flows through a profile die creating either fence panels (slats with interlocking edges) or posts (hollow structural sections). Die changes enable switching between panels and posts.
Calibration & Cooling
Vacuum calibration ensures precise dimensions for panel-to-post fit. Posts require particularly accurate dimensions for proper panel insertion and structural integrity.
Embossing & Cutting
Wood grain texture is embossed on visible surfaces. Panels and posts are cut to standard lengths and drilled for hardware if required.
Packaging
Fence components are packaged with all necessary hardware (brackets, screws, post caps) for complete fence system installation.
Technical Specifications
| Extruder Model | SJZ-80/156 (parallel twin-screw) |
|---|---|
| Fence Panel Width | 100mm - 180mm |
| Panel Thickness | 15mm - 25mm |
| Wood Powder Content | 50-60% |
| Production Speed | 1-3 m/min |
| Total Power | ~100-160 kW |
Why Choose Wings Plastic
Complete Fence System
Single line produces both fence panels and posts — enabling manufacturers to supply complete fence systems rather than individual components, increasing per-project value.
Ground-Contact Rated
Formulation options include ground-contact rated preservatives for fence posts installed directly in soil — matching the durability of pressure-treated wood.
UV & Anti-Fungal Package
Comprehensive UV stabilizers and zinc borate anti-fungal agents ensure 10-15 year outdoor durability with minimal fading and no rot or mold growth.
No Painting or Staining
WPC fencing requires no painting, staining, or sealing — unlike wood fencing that needs refinishing every 2-3 years. This lifetime maintenance savings is a key selling point.
Realistic Wood Appearance
Deep embossed wood grain texture and natural wood colors create fencing that closely resembles cedar or redwood fencing — without the maintenance requirements.
Quality Assurance
Every production line undergoes rigorous quality verification before delivery:
- Post dimensions verified for proper panel fit and structural integrity
- UV accelerated weathering test (QUV 2000h) for color retention
- Ground-contact decay resistance tested per AWPA E10 for post formulations
- Wind load resistance tested for complete fence panel assemblies
Typical Applications
Frequently Asked Questions
Above-ground components (panels) last 15-20 years. Ground-contact posts last 10-15 years with proper formulation. UV fading is gradual; structural integrity typically exceeds 20 years.
Yes, WPC posts can be set in concrete like wood posts. For direct soil contact, use ground-contact rated formulations. Always ensure proper drainage at the post base to prevent water pooling.
WPC has a more natural wood appearance and texture. Vinyl is available in more colors and has slightly better UV resistance. WPC is typically less expensive than premium vinyl fencing. Both are low-maintenance alternatives to wood.
Standard heights: 1.2m, 1.5m, 1.8m, 2.0m. Styles: privacy (solid panels), semi-privacy (louvered), and picket. Post sections: 90x90mm, 120x120mm. Custom profiles are available with die modifications.
